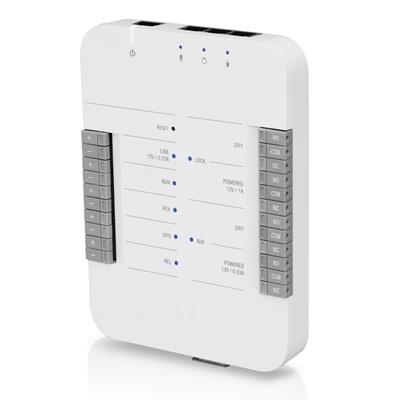

Ubiquiti Networks Access Hub. Ethernet LAN data rates: 1000 Mbit/s. DC voltage range: 12 - 30 V. Width: 190 mm Depth: 126 mm Height: 33 mm
UniFi Access Hub is an intelligent IP networked single door controller a part of UniFi Access solution.
The UniFi Access Hub comes with versatile interfaces including support for most electric bolts/strikes magnetic locks and 12V access accessories such as motion sensors push buttons and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users visitors schedules and access policies with the with the intuitive browser-based interface.
Features:
Powered by 802.3bt (PoE++) switch
Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
12V powered and dry relays compatible with most locks
Four inputs for motion sensors request-to-exit devices and door position switch
Managed with UniFi Access Controller in UDM-Pro
DIN-rail mounting
Note: UniFi Dream Machine Pro or Cloud Key Plus is required to run UniFi Access
Specifications
Dimensions
190 x 126 x 33 mm
(7.48 x 4.96 x 1.29")
Weight
457g
Enclosure
Plastic Enclosure with Metal Mount Plate
Mounting Options
DIN Rail
Networking Interface
4 x Gigabit Ethernet
Max. Power Consumption
40W
Power Method
802.3bt PoE
Input Relays
REX - Request to Exit
REN - Request to Enter
REL - Remote Release
DPS - Door Position Sensor
Dry Output Relay
Lock - Rated 30VDC up to 1A
Aux - Rated 30VDC up to 1A
Powered Output Relay
Lock - 12VDC up to 1A
Aux - 12VDC up to 0.33A
Line - 12VDC up to 0.33A
LEDs
(1) System (3) PoE Out (4) Input
(2) Output Relays (1) 12VDC Out
Buttons
Terminal Blocks Reset
