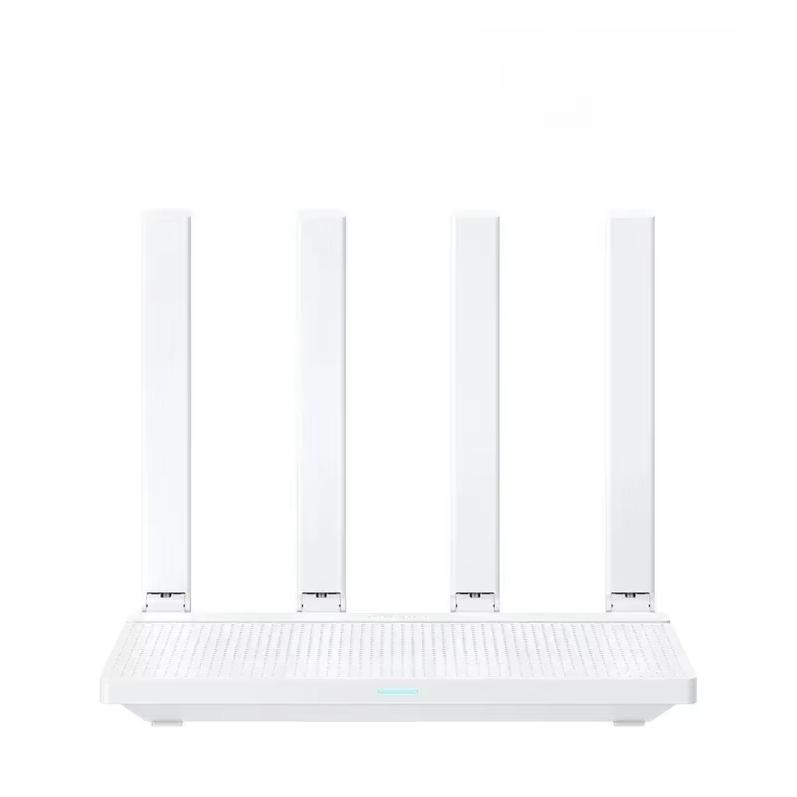

Hardware configuration: Product Name: Xiaomi Router AX3000T Processor: Mediatek Filogic 820 dual core 1.3GHz CPU 2.4G Wi Fi: 2×2 (Supports up to IEEE 802.11ax protocol, with a theoretical maximum rate of 574Mbps) 5G Wi Fi: 2X2 160MHz (supports up to IEEE 802.11ax protocol, with a theoretical maximum rate of 2402Mbps) Product antenna: 4 pieces Product heat dissipation: natural heat dissipation Machine interface: 4 10/100/1000M adaptive WAN/LAN ports (Auto MDI/MDIX) LED indicator light: 1 System reset button: 1 Mesh button: 1 Power input interface: 1 Protocol standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab Executive standard: GB/T 9254.1-2021; GB 4943.1-2022 Wireless parameters: Dual frequency: 2.4GHz and 5GHz Wireless channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,12,13 5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64149, 153, 157, 161, 1651 Modulation method: 11b: DSSS: DBPSK (1Mbps), DQPSK I2Mbps), CCK (5.5/11Mbps) 11a/g: OFDM: BPSK (6/9Mops), QPSK (1218Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps) 11n: MIMO OFDM: BPSK, QPSK, 16QAM, 64QAM Rate set: MCSO-MCS15 11ac: MIMO OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM Rate set: MCSO-MCS9 (supports 2 streams) 11ax: MIMO OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Rate set: MCSO-MCS11 (supports 2 streams) Software parameters: Operating system: MiWiFi ROM Wireless security: WPA PSK/WPA2 PSK/WPA3 SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti scratch network Management application: supports Web and Mi Home App (Android BiOS) Product accessories: Instructions (including three guarantee cards): 1 piece Network cable: 1 piece Work environment: Working environment temperature: 0-40 ℃ Working humidity: 10% -90% RH (non condensing) Storage temperature: -40-70 ℃ Storage humidity: 5% -90% RH (non condensing) Packaging List: Router × 1 Network cable × 1 Adapter × 1 Instructions × 1 Dimension: Length, width, and height: including antenna: 225mm x 172mm x 208.8mm Without antenna: 225mm x 172mm x 51mm
